The Poseidon Dye-Sublimation printer is offered in 64" and 74" wide.

DGI POSEIDON Industrial Dye Sublimation Printer

Speed

Prints 1 Linear Yard/ 66 Seconds

Ink

4 or 6 Colors w/No Speed Reduction

Mobile App

Mobile App &
Eco-Mode

Paper Roll

Holds 500m
Mini-Jumbo

The award-winning DGI POSEIDON industrial dye sublimation printer. Designed for print service providers and inplants looking to take production to the next level.


The Poseidon is an intermediate industrial dye-sublimation printer engineered for exceptional performance in speed and reliability. Utilizing 300dpi Kyocera heads, the Poseidon boasts an astounding production speed of 1 linear yard every 66 seconds for both 4 and 6 color configurations. Exclusive innovations such as nozzle weeping, separate wiping and capping stations, eco-mode, remote mobile monitoring, head collision sensors, dual dryers, and mini-jumbo roll capacity are standard features not found on any other printer of this size or price range.

DOWNLOAD PRODUCT SHEET

Book a live one-on-one virtual demo to see how
Poseidon can take your production to the next level.

BOOK DEMO
5-18PL Drop Size

Wide Picoliter range provides greater control, allowing higher densities for more vibrant, deeper colors.

Capping Station

Reduces the need for cleanings and recovers nozzle dropout due to exposure without printing.

Dual Dryers with Rear Take Up

Ensures ink will dry at production speed without degrading the structural integrity of the paper.

Eco-Mode

Powers down Non-essential Functions between runs for faster start-up and initialization between jobs.

Award Winning Features

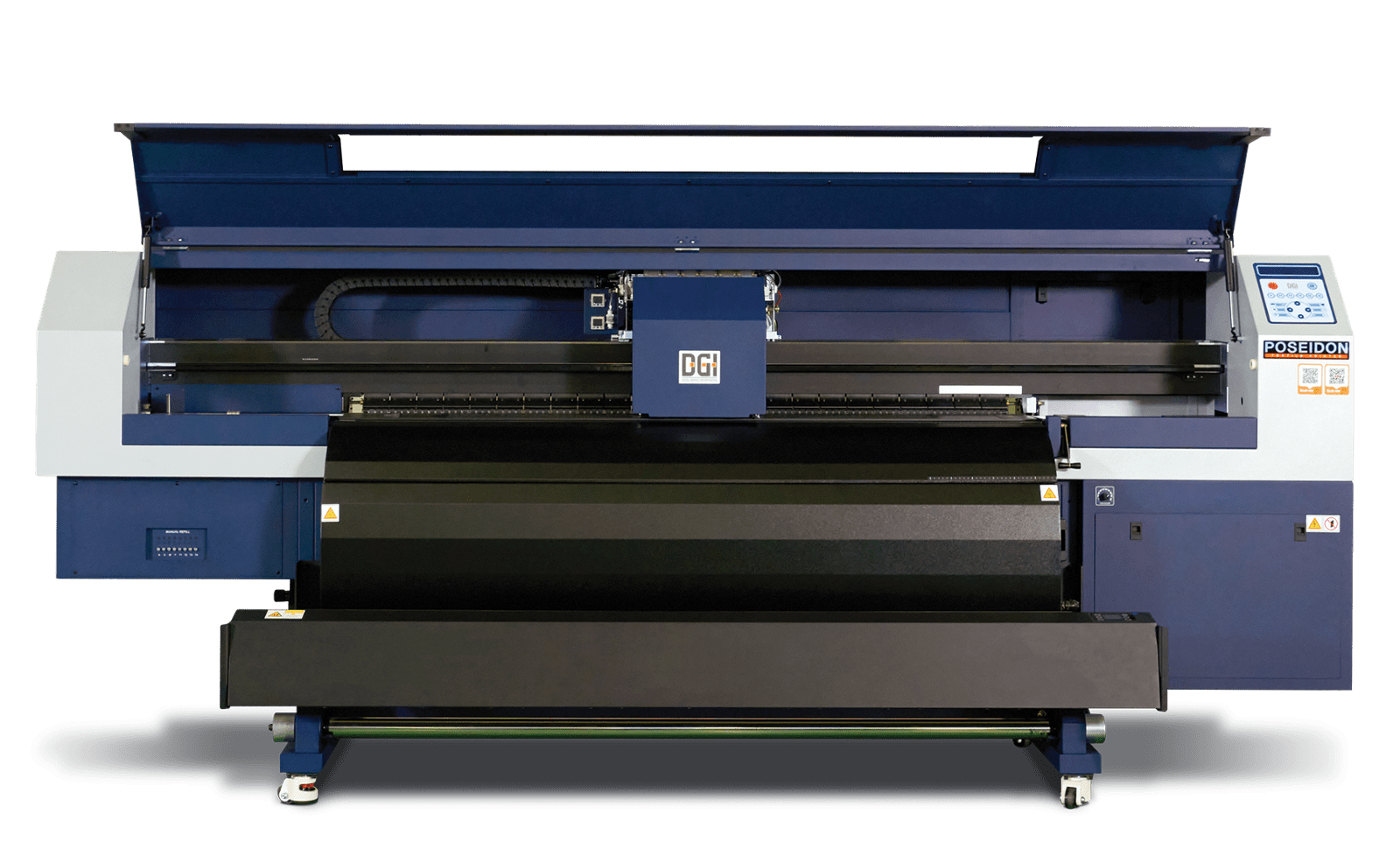

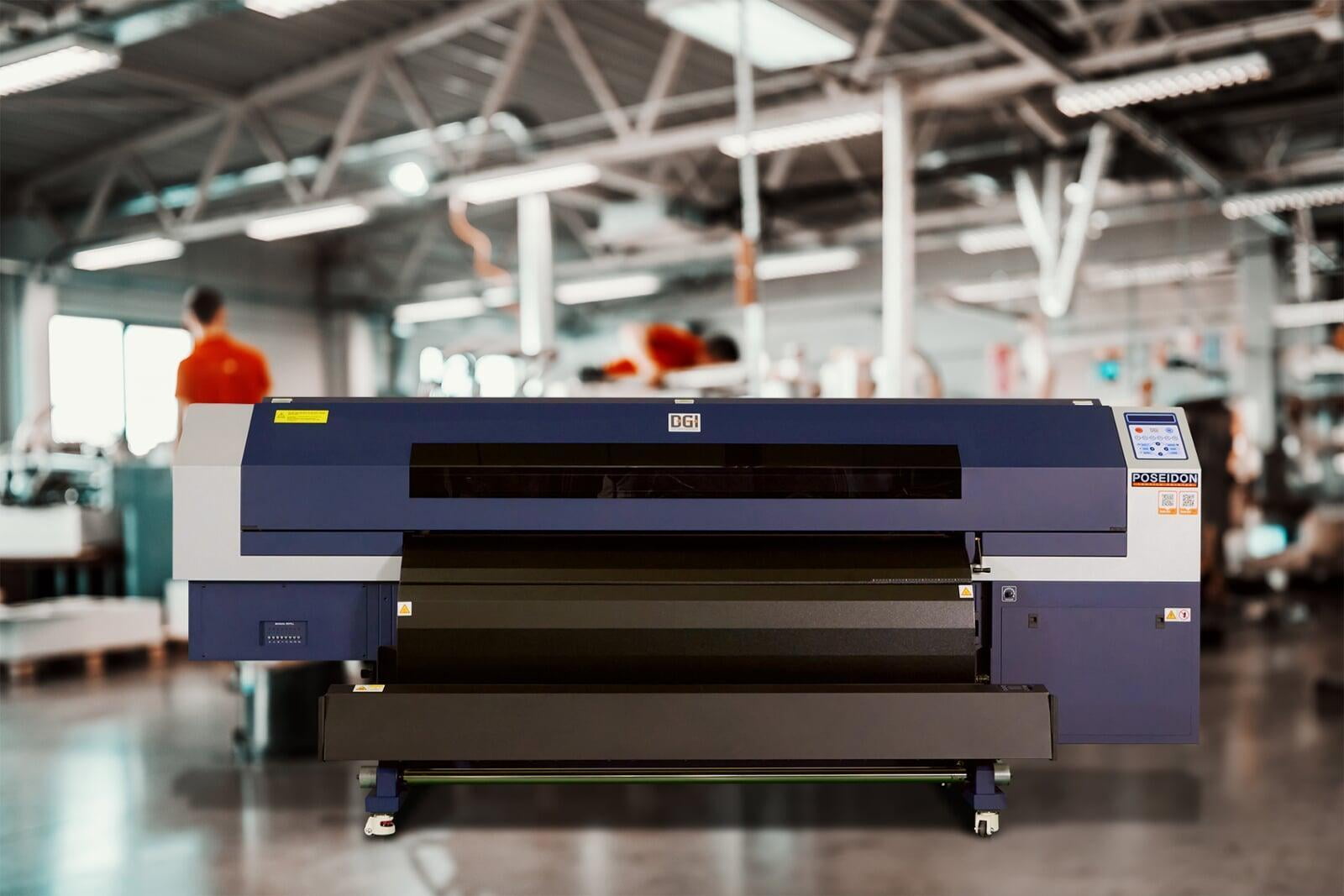

Poseidon Front Facing
Head Collision Sensor

Prevents head strikes by stopping the carriage when it detects contact with an obstacle during printing.

Wiping Station

Automatically cleans the underside of the head at set intervals to preserve the life of the printhead.

Ink Rheology for Better Blending

The chemistry of the F160 ink provides better dot gain and more natural blending specifically with gradients.

Nozzle Weeping

Weeping action keeps the nozzles moist, preventing them from drying while idle and reducing dropout.

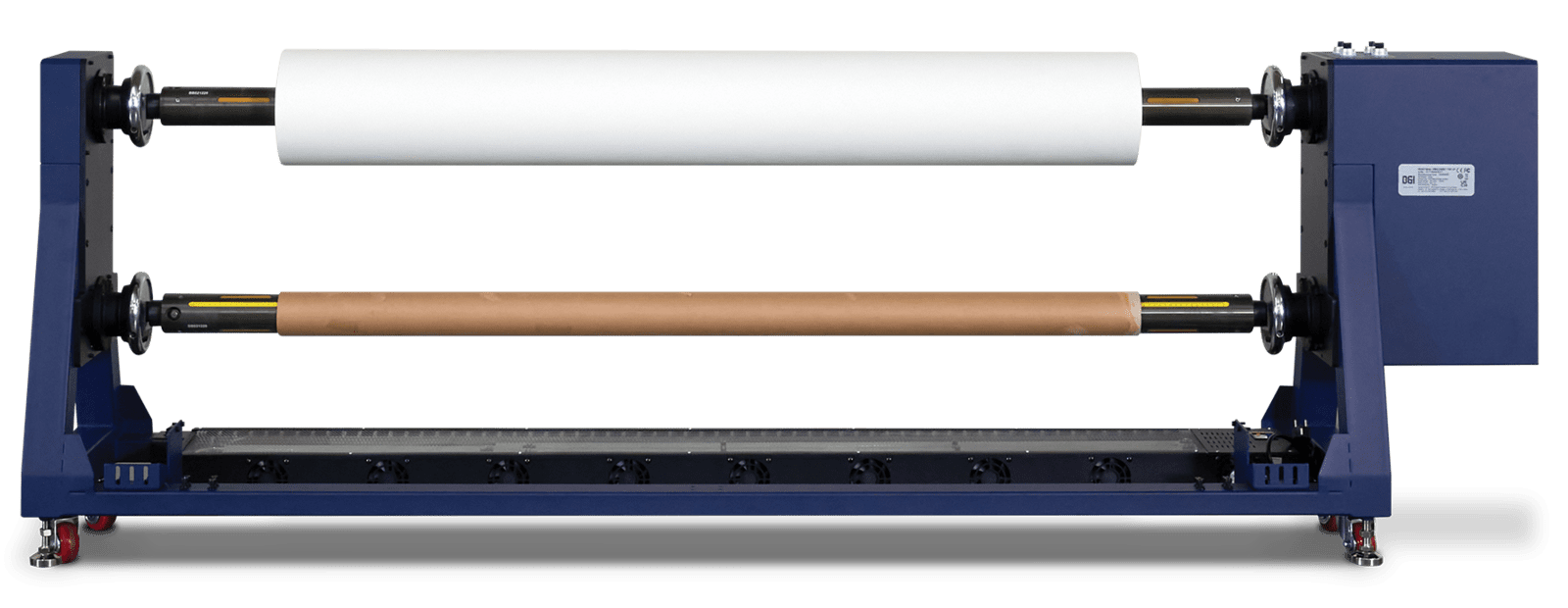

Jumbo Roll Assembly
Mini-Jumbo Rolls

Standard holds 1,640*ft. (500m) mini-jumbo rolls. Or option for 6,560*ft. rolls (2,000m) with Jumbo Take-up System.

*Based on 70g paper

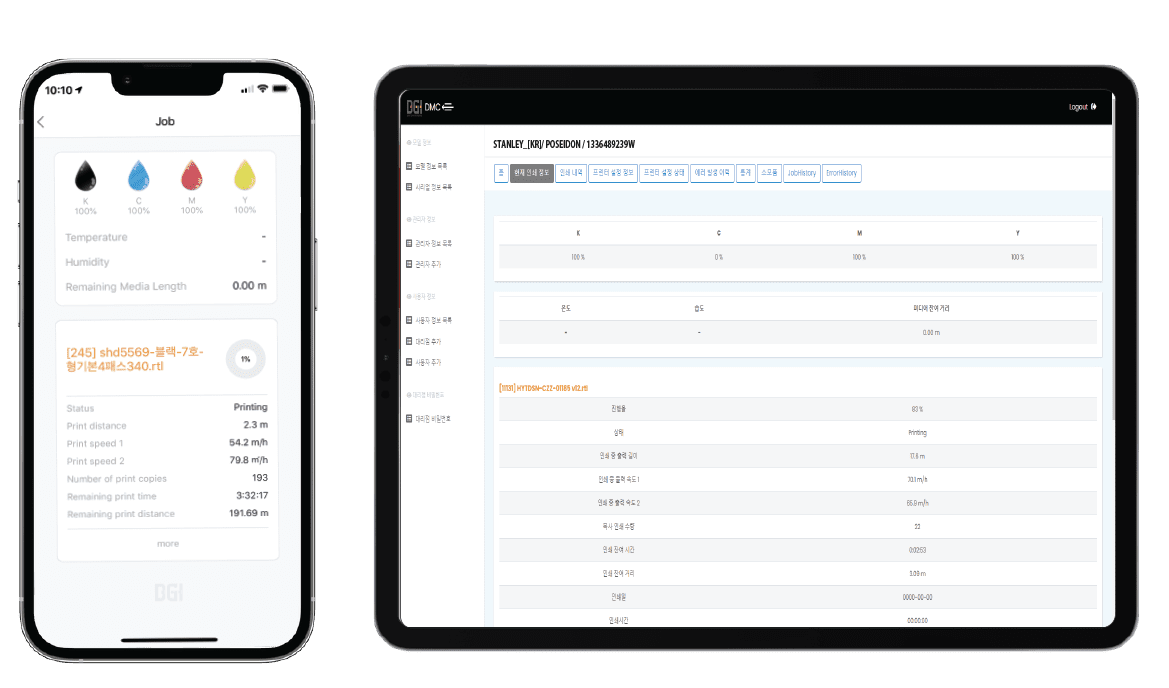

Mobile Monitoring App
Mobile Monitoring

Get real-time print status updates with the mobile app* ideal for unmanned operation.

*Requires Internet Connection

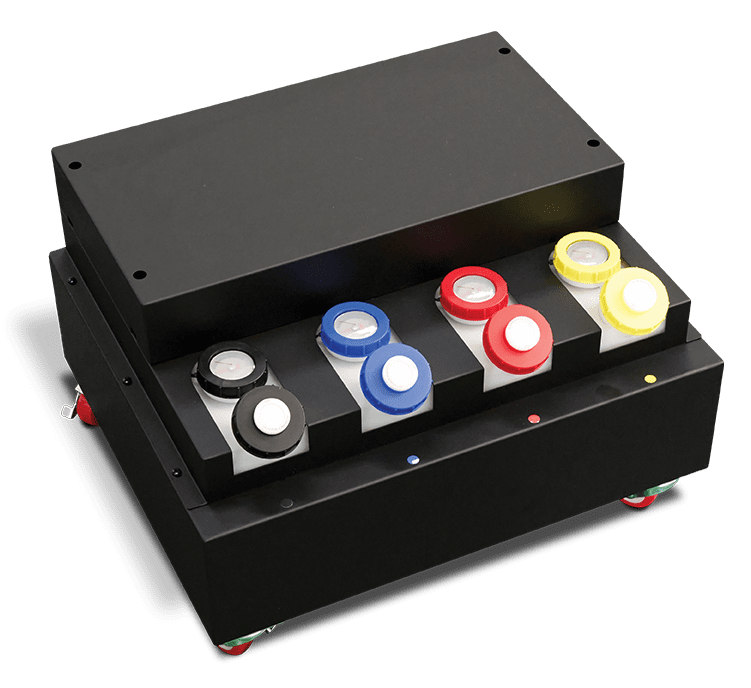

Ink Tank
6.5 L Ink Tanks

Increase run time and decrease downtime with 6.5 L ink tanks (optional) in 4 or 6 color configurations.

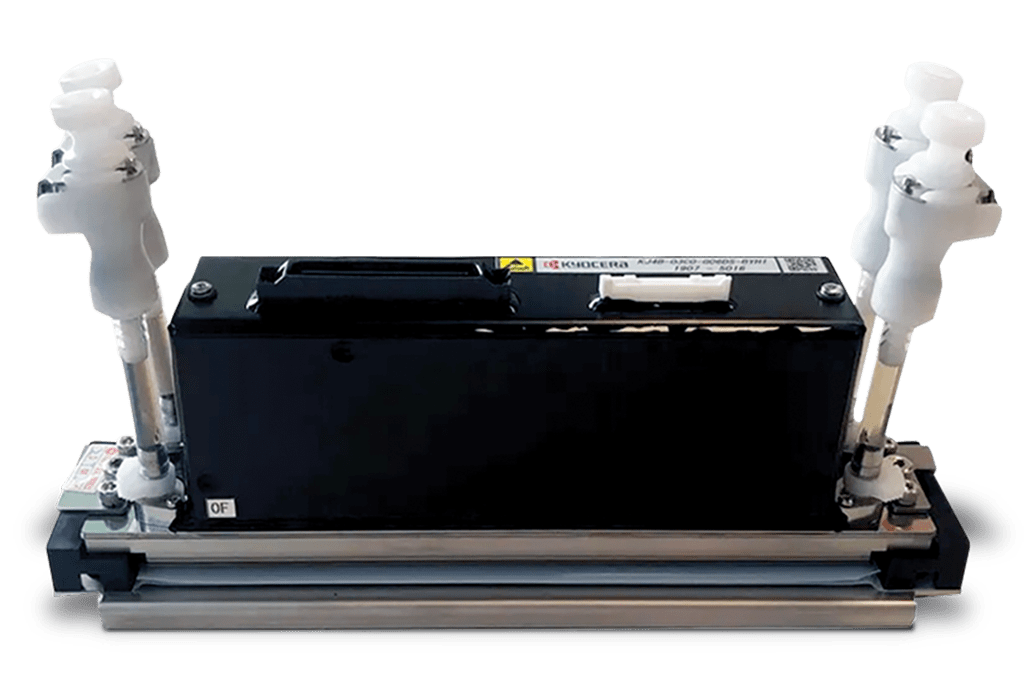

Print Head
Kyocera Print Heads

Designed for high-speed printing, the 300dpi 2-color printheads deliver high quality and exceptional reliability.

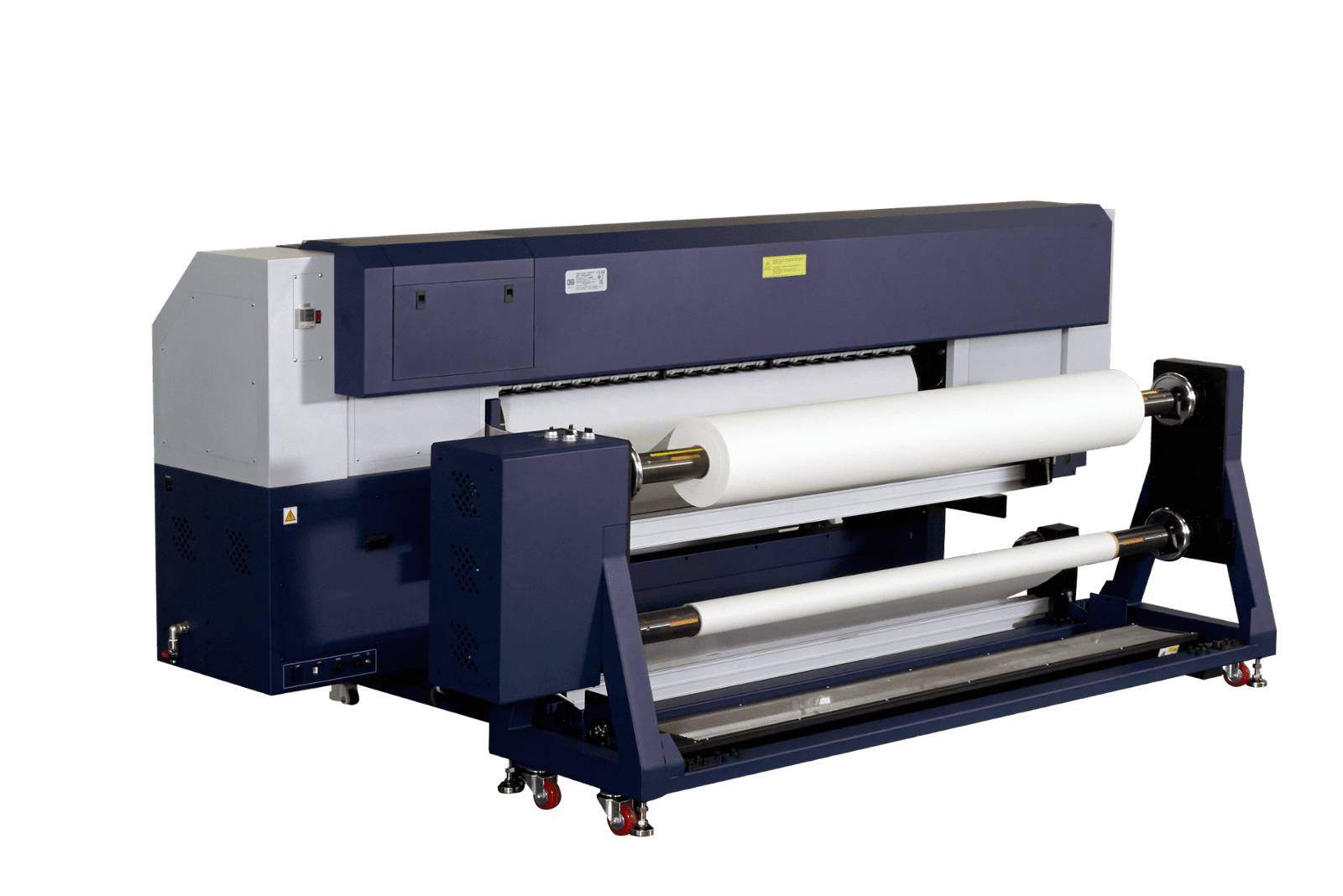

Poseidon with Jumbo Roller

Shown with optional Jumbo Take-up System

Poseidon Without Jumbo Roller

Shown without optional Jumbo Take-up System

Print Head
Piezo (Kyocera) (2 and 3 head options)
Ink
DGI F160
Drop Size
5~18 PL Variable Dot
Media
Transfer Paper
Print Mode
Uni/Bi, Normal/Interleave I,II / DGI Band Free Mode I,II,III
Interface
TCP / IP, USB 3.0
Resolution
Max. 600 x 1,200 DPI
RIP Software
Ergosoft Ver. 15 (Optional : Wasatch, Caldera)
Color
4 Colors (Cyan, Magenta, Yellow, Black) / 6 Colors (CMYK + Fluo Yellow (FL) Fluo Pink (FP),Light Magenta (LM), Light Cyan (LC), Orange, Blue
Operating Environment
Temperature: 68~86°F (20~30°C)
Humidity : 40~70%
Electricity
Single Phase, 200~240V, 50/60Hz, 35A/(Printer:15A,Dryer: 10A)
Max Print Width
64”: 64.17”
74”: 74.02"
Max Media Load
64”: 64.96” Dia: 7.87” / Wt: 66 lbs.
74”: 74.80” Dia: 7.87” / Wt : 66 lbs.
Dimensions Crated
64”: 137.80”(L) x 42.28”(W) x 67.33”(H)
74”: 137.80”(L) x 42.28”(W) x 75.20”(H)
Dimensions Uncrated
64”: 129.92”(L) x 47.25”(W) x 53.15”(H)
74”: 139.37”(L) x 47.25”(W) x 53.15”(H)
Weight Crated
64”: 1,455 lbs. (660Kg)
74”: 1,455 lbs. (660Kg)
Weight Uncrated
64”: 970 lbs. (440Kg)
74”: 1,014 lbs. (460Kg)
Jumbo Roll Unwinder Dimensions
106.30”(L) x 21.66”(W) x 35.43”(H)
Weight: 253.5 lbs.
Jumbo Roll Unwinder Electric
Single Phase, 200~240V, 50/60Hz, 4A
Print Speed
Main Scan (DPI)
Mode
Sub Scan (DPI)
Speed
Pass
Normal
600
64”: 115 74”: 135
2
600
64”: 80 74”: 85
4
Interleave
900
64”: 55 74”: 60
6
1200
64”: 40 74”: 45
8
