DGI Hercules Printer

The Hercules Dye-Sublimation printer is offered in 74" wide.

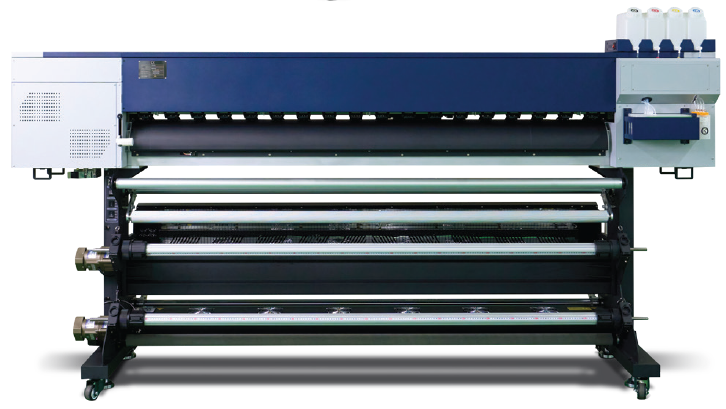

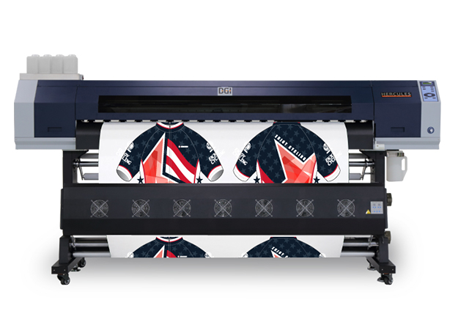

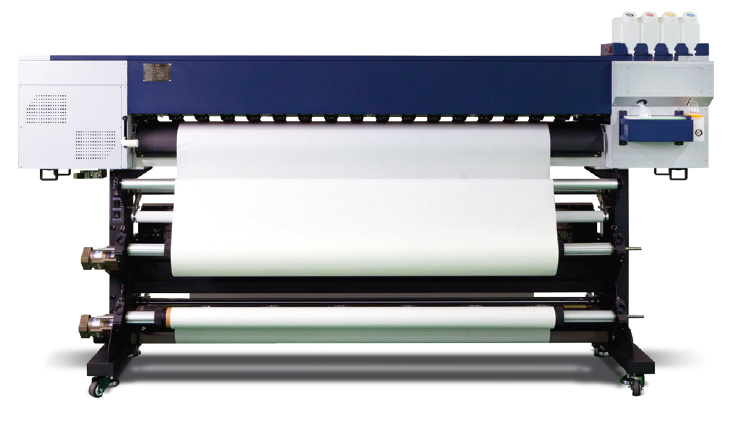

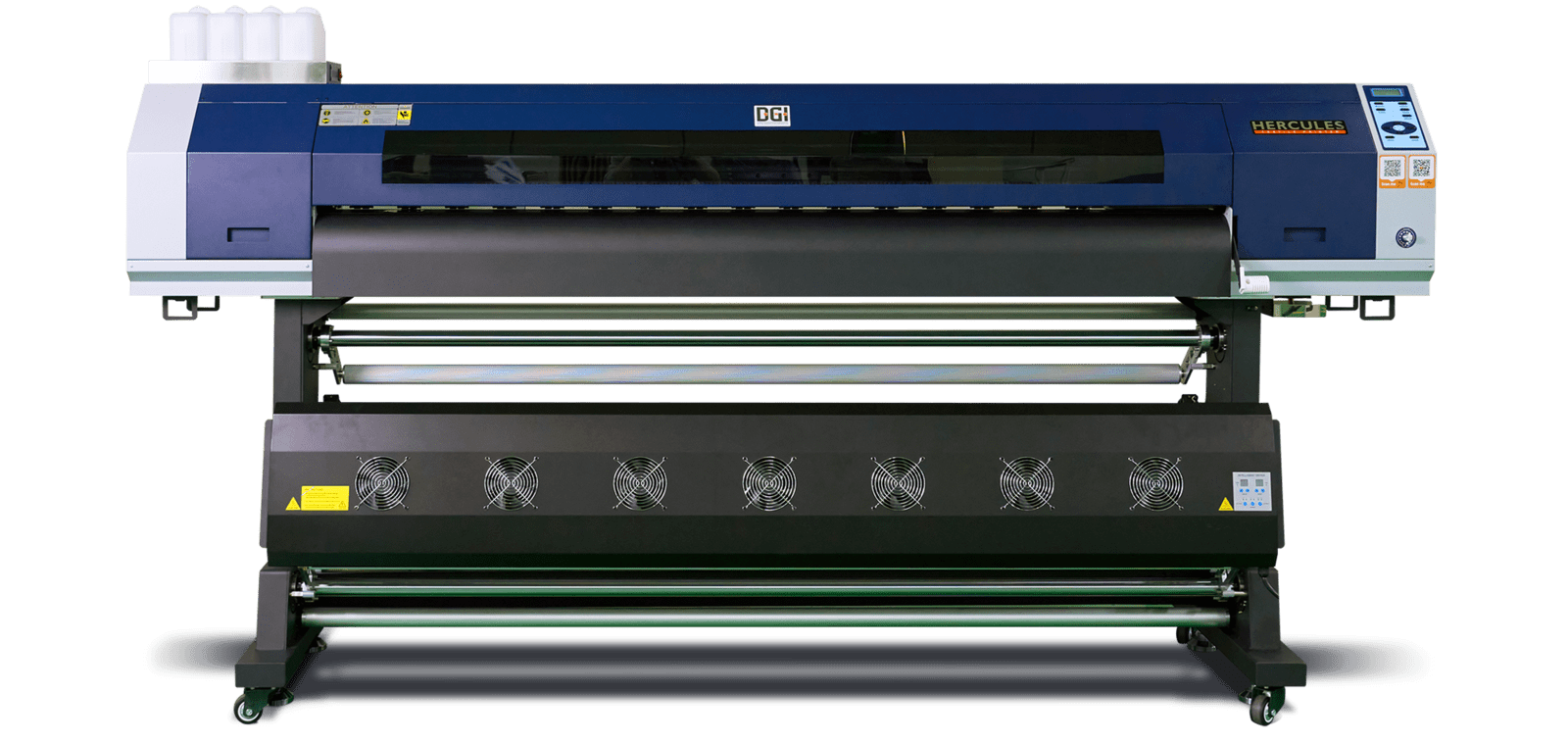

DGI HERCULES Dye- Sublimation Printer

1,044 ft² /hr

2.5 Liter Tanks

74" Printer

200m Paper Rolls

Known for their engineering innovations for printers in the industrial format, DGI has taken that same technology approach with their first entry level textile printer aptly named - HERCULES

The 74" HERCULES with its advanced features and cutting-edge technology, puts this printer in a league of its own. Boasting two PrecisionCore Micro TFP i3200 heads running genuine F173 ink with exclusive waveform technology, the HERCULES offers unparalleled print performance. It is equipped with 2.5L bulk ink tanks, and a constant winding take-up system for rolls up to 656 linear feet (200m), allowing for up to 6 hours of unmanned production. Plus, its carriage collision sensors and vacuum suction capping station ensure smooth and error-free printing. Additionally, its carriage speed control adds another level of precision.

Experience the ultimate printing solution that surpasses all others in its class and price range.

DOWNLOAD PRODUCT SHEET

Book a live one-on-one virtual demo to see how the Hercules can take your production to the next level.

BOOK DEMO

2.5-12.5PL DropSize

Wide Picoliter droplets with variable dots offers greater control to ensure high resolution printing.

Carriage Speed
Control

Adjust carriage speed for optimum control over print quality range - Normal Quality, High Quality.

Dual Dryers with Rear Take Up

Ensures ink will dry at production speed without degrading the structural integrity of the paper.

Take-Up System

Consistent tension with max load of 656 linear feet (200 linear meters).

Head Collision Sensor

Prevents head strikes by stopping the carriage when it detects contact with an obstacle during printing.

Capping Station

Reduces cleanings, and recovers nozzle dropouts due to exposure without requiring the need to print.

I3200 Print Heads & F173 Ink

A special waveform was developed by DGI to enhance printing through the I3200 heads.

2.5L Ink Tanks

High-capacity ink tanks allow for continuous, unattended printing to extend production.

Print Head

Piezo (PrecisionCore micro TFP I3200) (2 head)

Ink

DGI F173

Drop Size

2.5~12.5 PL Variable Dot

Media

Transfer Paper

Print Mode

Uni-Direction / Bi-Direction

Interface

TCP / IP, USB 3.0

Resolution

Max. 720 x 1,800 DPI

RIP Software

Ergosoft Ver. 15 (Optional : Wasatch, Caldera)

Color

4 Colors (Cyan, Magenta, Yellow, Black), Included with printer

Operating Environment

Temperature: 60~82°F (16~28°C)
Humidity : 35~65%

Electricity

Single Phase, 110V, 50/60Hz, 26A/(Printer:11A,Dryer: 15A)

Max Print Width

74.8” (1900mm)

Max Media Load

76.3” (1,944mm) Dia: 7.8” (200mm) / Wt : 66 lbs.

Dimensions Crated

122.44”(L) x 38.97”(W) x 62.99”(H)

Dimensions Uncrated

117.32”(L) x 33.07”(W) x 42.91”(H)

Weight Crated

1,455 lbs. (660Kg)

Weight Uncrated

815 lbs. (370Kg)

Main Scan (DPI)

Mode

Sub Scan (DPI)

Speed

Pass

DBF Mode

720

Normal

600

Print Speed

360

1800

Feather/ No Feather

720

1200
